Commercial auto Air hydraulic jack by GOLDEN BOAT
auto Air hydraulic jack Introduction:
With this air bag load assist kit you can run them deflated when
you are running light weight. Then just pump them up when you load
up. The heavier the load the more air you can apply.
1. When single side needs to be lifted.
2. Go above water in sand or muddy road.
3. Escape when single wheel sinks into ditches.
4. Cross ditches.
5. Preferred jacking tool on frame racks, alignment machines and in
all types of repair shops.
6. Can be used on frame or alignment machine, or on the floor. With
its best quality, you can expect years of trouble-free use.
Model type | 50-T2 |
Type | AIR HYDRAULIC JACKS |
Lifting Capacity | 10/25/50T |
Min Height | 151mm |
Max Height | 317mm |
Lifting Height | 10T:52mm 25T:54 mm 50T:60mm |
Working air pressure | 0.9-1.2Mpa |
Net weight | 57kg |
Gross weight | 73kg |
Packing size: | 1450*330*280mm |
Lifting:
1. Connect adequate air source to the air supply inlet(Air pressure
0.9-1.2Mpa)
2. Turn the control valve clockwise until the pump starts.
3. Transfer the load immediately to appropriately rated jack
stands.
Lowering:
1. Raise load high enough to clear the jack stands.
2. Remove jack stands carefully(always used in pairs).
3. Slowly turn handle knob counter-clockwise, if the load fails to
lower:
(a). Use another jack to raise the vehicle high enough to reinstall
jack stands.
(b). Remove the malfunction jack and then jack stands.
(c).Use the functioning jack to lower the vehicle.
4. After removing jack from under the vehicle, fully retract the
jack to reduce ram exposure to rust and contamination.

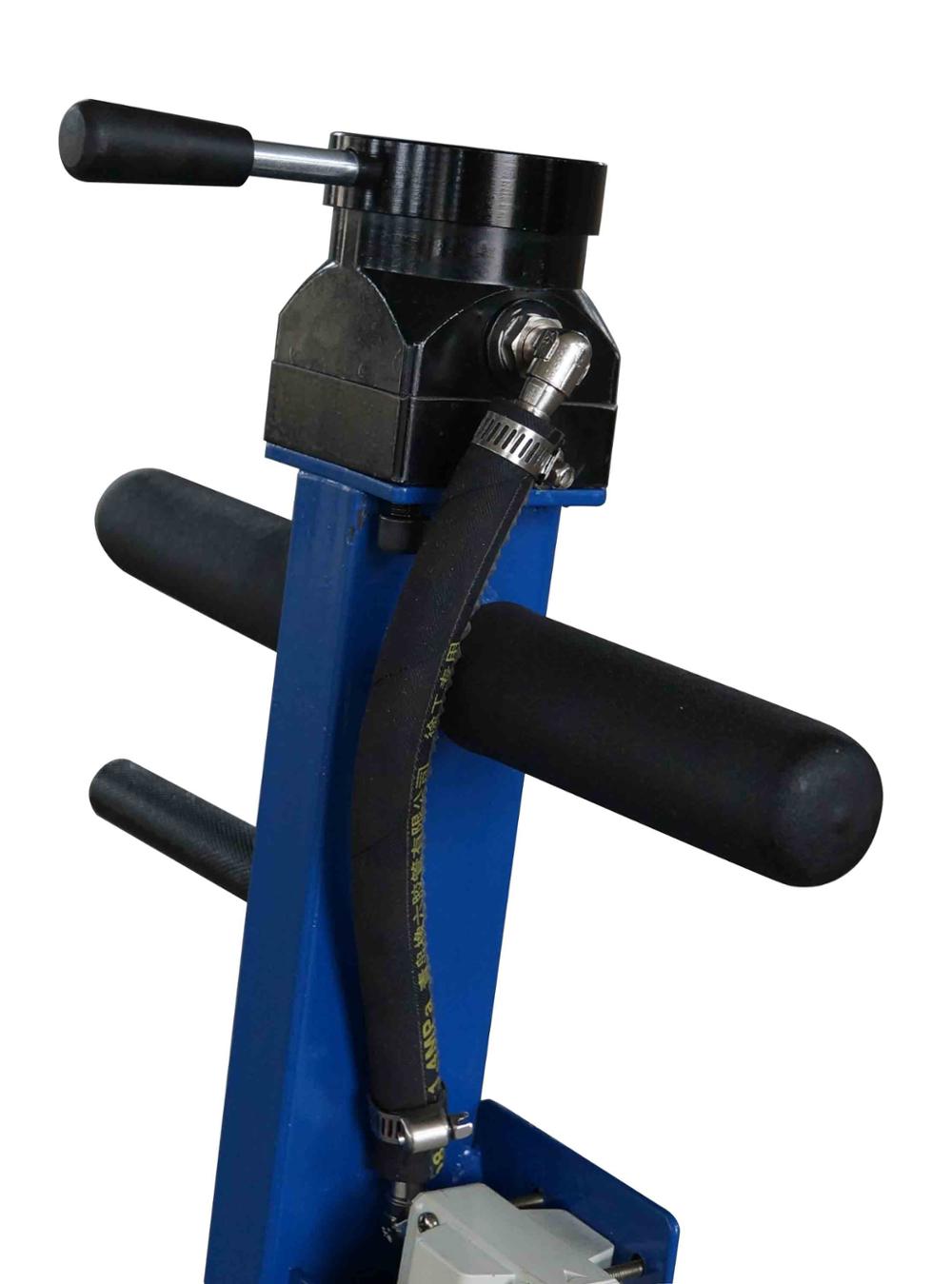

The detailed compenent parts:
Packages:
