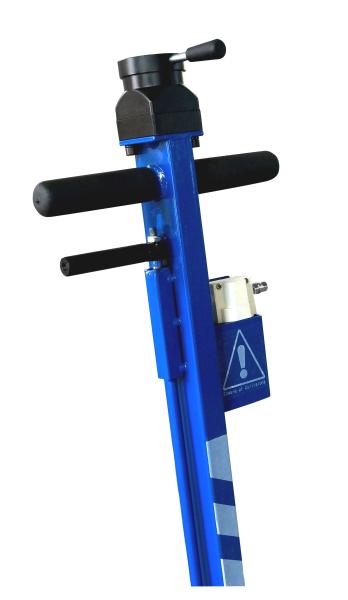

50T2 Air hydraulic jack

Description of Car jack:

1. for load lifting activities
2. capacities : 50T
3. high quality with most competitive

4. Compact design ,small volume,light weight,easy operation,time saving,labor saving,large lifting tonnage

5. Small dimension,large carrying capacity,high-pressure resistance performance

6. Slightly slide switch for ealizing purpose lifting

Lifting:

1. Connect adequate air source to the air supply inlet(Air pressure 0.9-1.2Mpa)

2. Turn the control valve clockwise until the pump starts.

3. Transfer the load immediately to appropriately rated jack stands.

Lowering:

1. Raise load high enough to clear the jack stands.

2. Remove jack stands carefully(always used in pairs).

3. Slowly turn handle knob counter-clockwise, if the load fails to lower:
(a). Use another jack to raise the vehicle high enough to reinstall jack stands.

(b). Remove the malfunction jack and then jack stands.

(c). Use the functioning jack to lower the vehicle.

4. After removing jack from under the vehicle, fully retract the jack to reduce ram exposure to rust and contamination.
